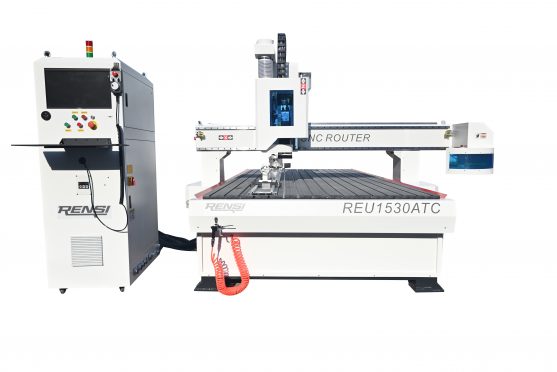

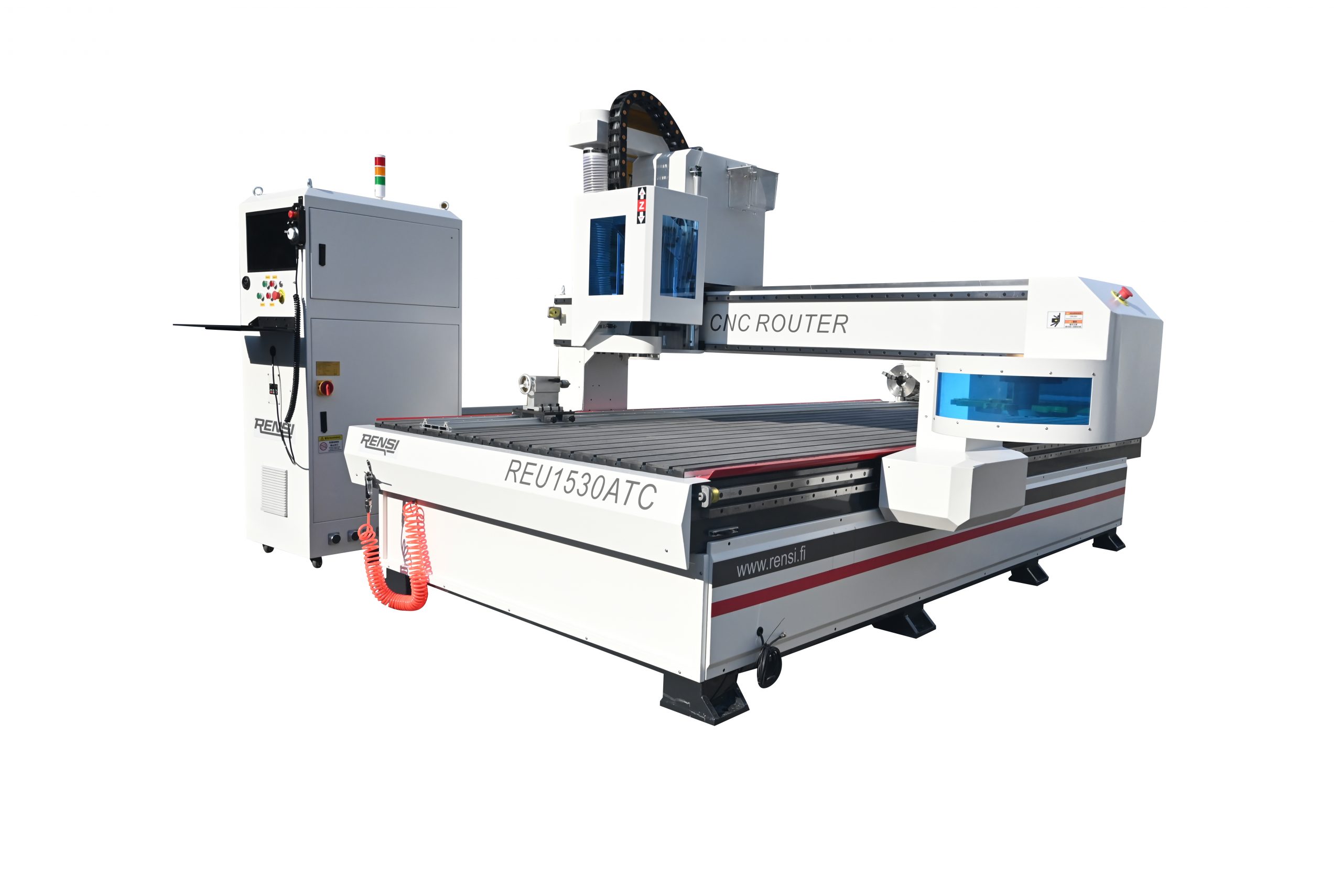

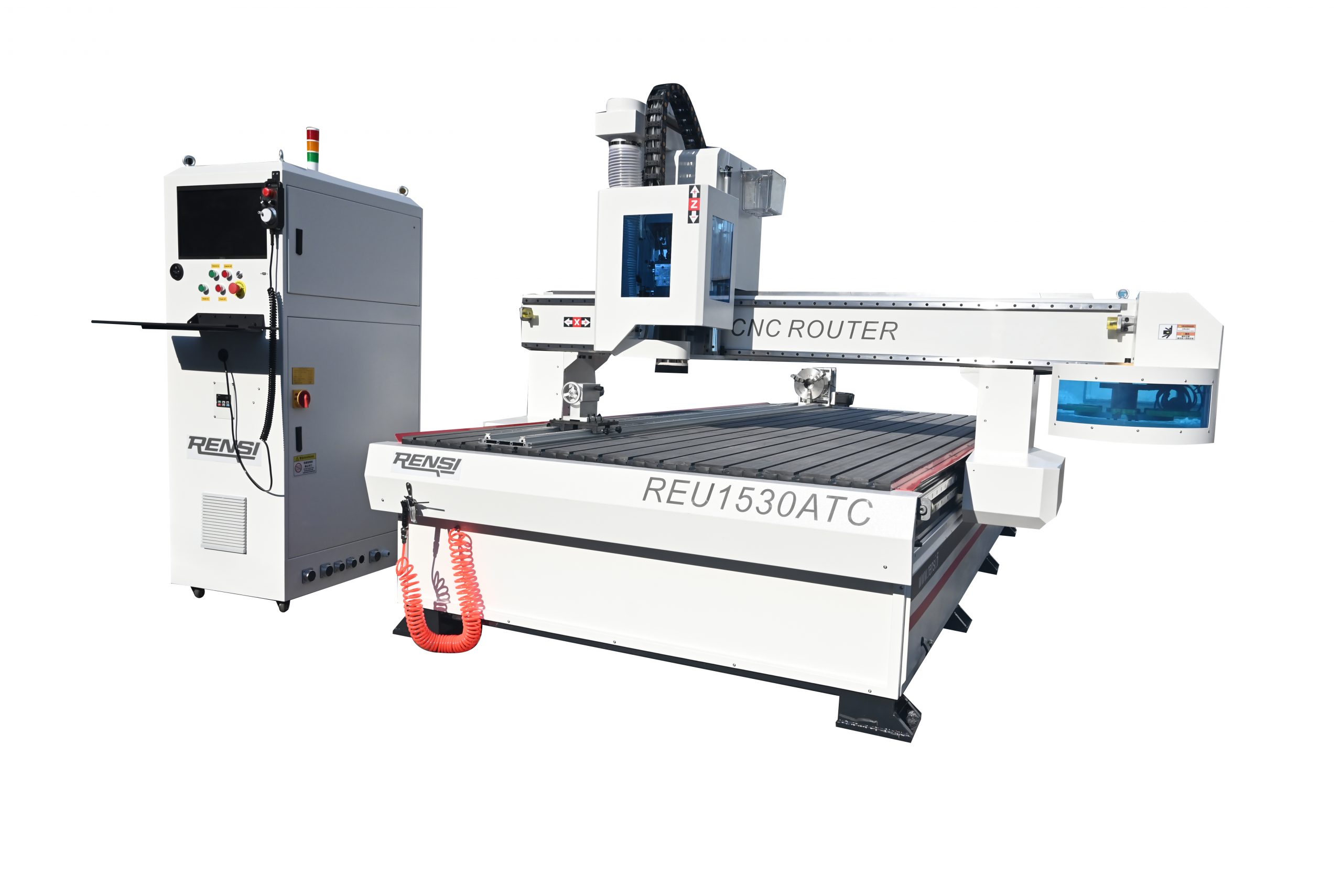

CNC Router with 4 axis
The CNC Routers are with automatic tool changers and a rotary tables. The rotary tables can be removed from the machines. The rotary tables drive the workpieces to rotate, while the spindles perform cutting and engraving, thus achieving continuous, smooth, and precise 360-degree engraving.
Tekniset tiedot
| Item | REU1530ATC |
| Travelling size (mm) | 1520x3020x300 |
| Working size (mm) | 1500x3000x280 |
| Table to gantry (mm) | 300 |
| Spindle | 9KW HQD ATC spindle |
| Table | T-slot table |
| Rotary | Net working lenght is 0-2900mm, diameter is 0-200mm (other sizes are also avaiable) |
| Spindle speed | 24 000 rmp |
| Carousel Tool changer | 8 positions |
| Collet /tool holder | ER32/ISO30 |
| Inverter | Delta |
| Motor | 750w Delta Servo Motors and Driver with Japa Reducer (Option:YASKAWA Servo) |
| Transmission | Helical Rack and pinion in X Y |
| Taiwan CSK Linear guide | |
| Ball screw and coupling device in Z | |
| Controller | NC-studio PM95A-4C with PCIE card, Lamda and HP PC Win.11 and 64bits |
| Voltage | 380V/three phases/50Hz |
| Weight | 1600KGS |
