CO2 Lasers

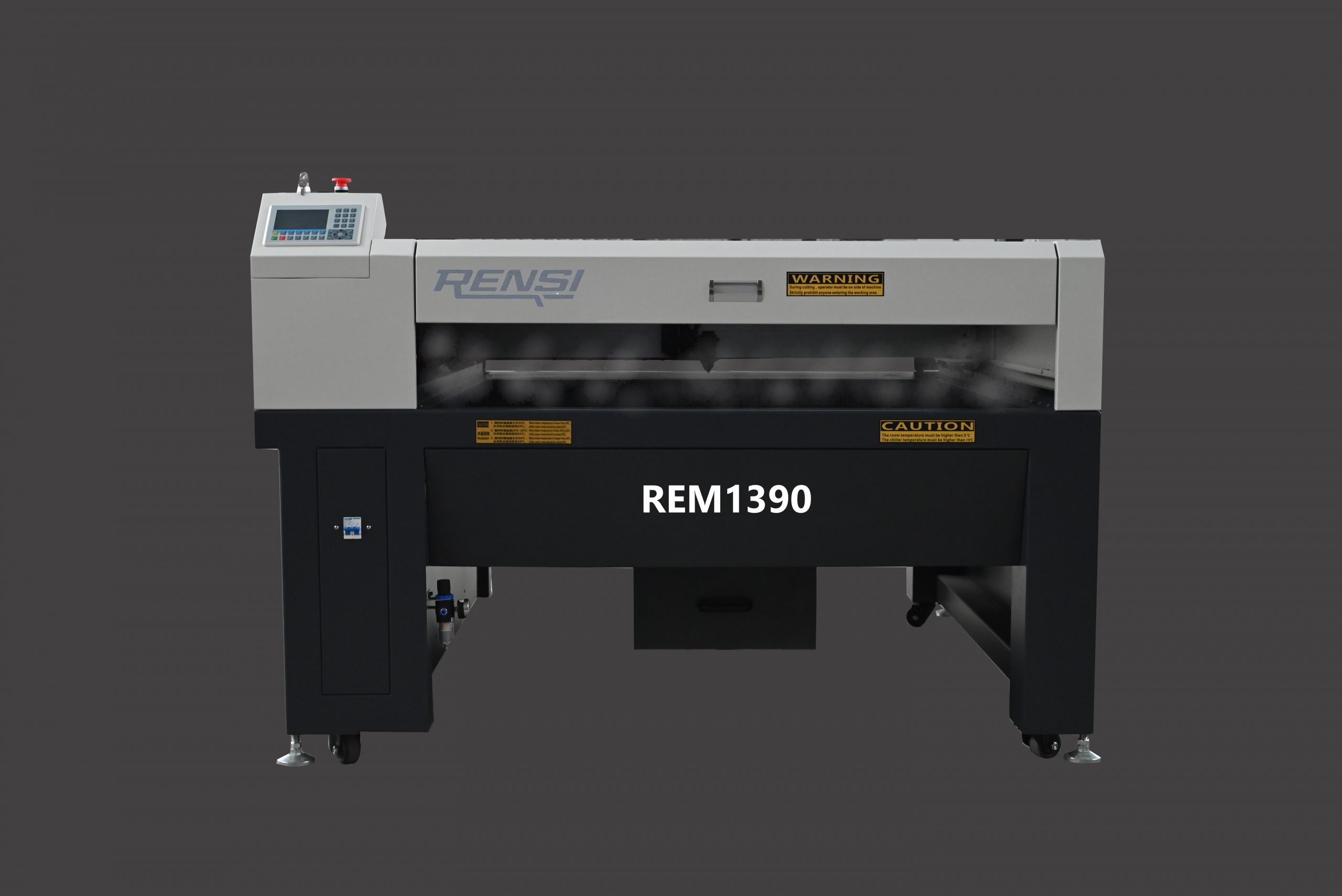

3REM1390 with 300W tube

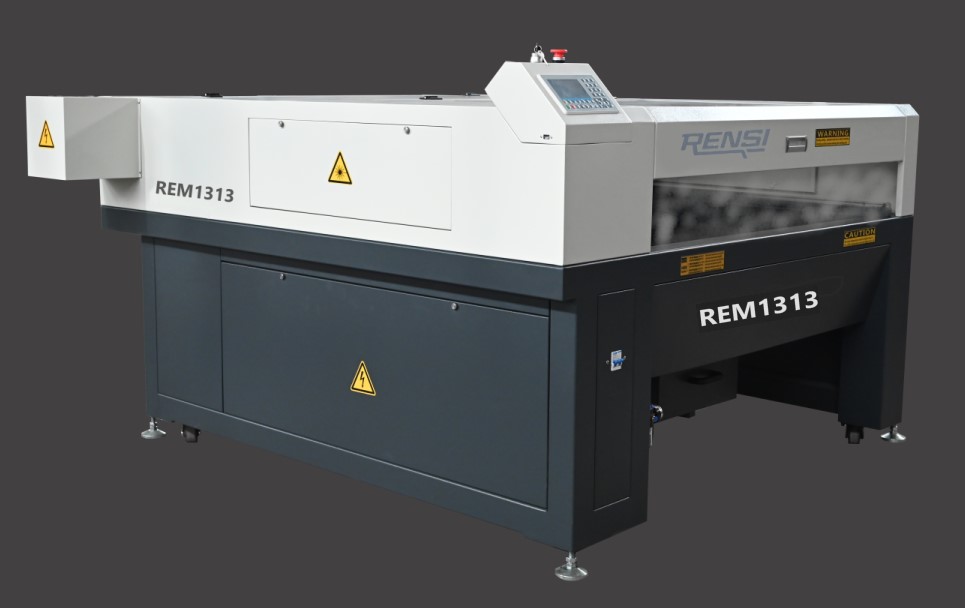

REM1313 with 300W tube

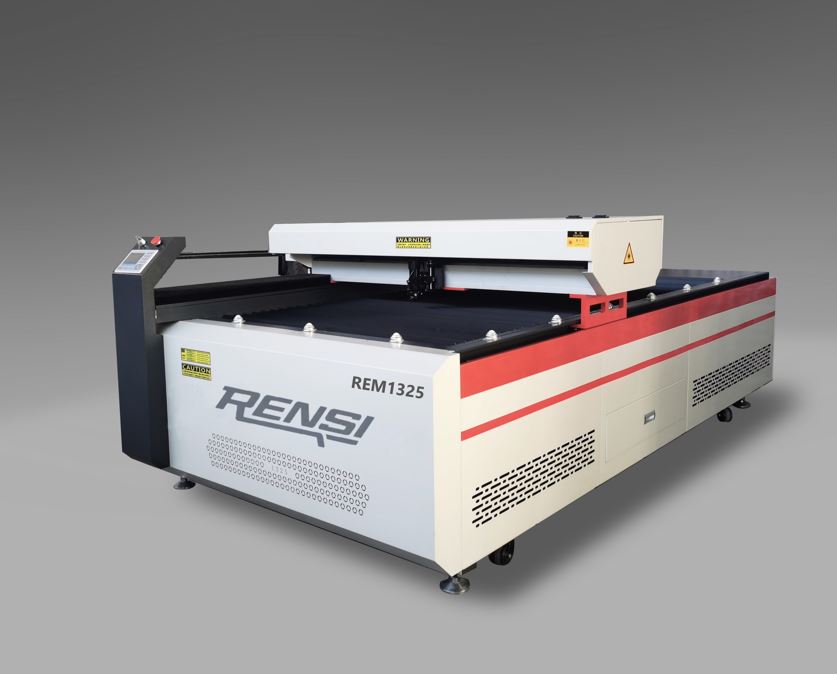

REM1325 with 300W or 500W tube

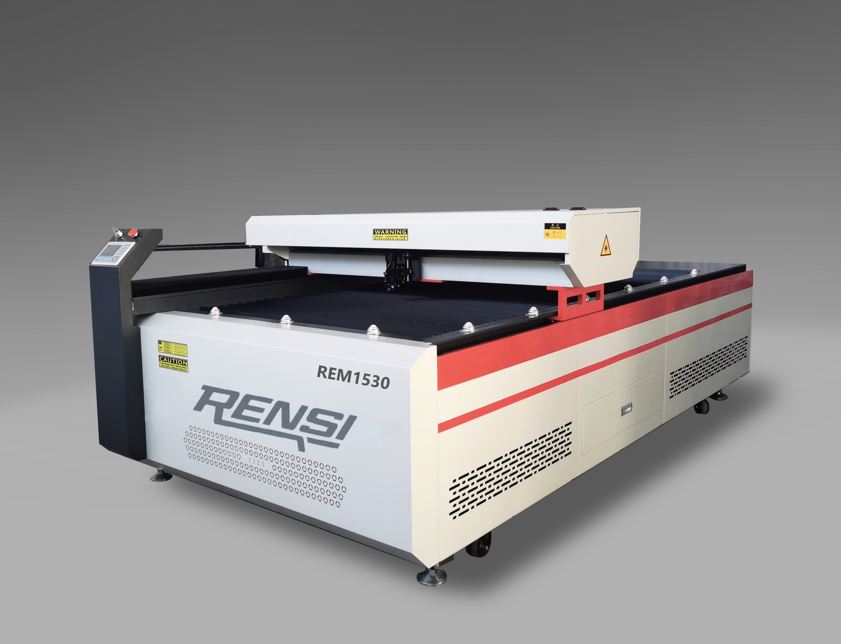

REM1530 with 300W or 500W tube
Tekniset tiedot
| Specifications of REM-lasers with 300W | ||||
| Item | RE1390/300W | REU1313/300W | REM1325/300W | REM1530/300W |
| Working size (mm) | 1250×900 | 1250×1250 | 1250×2500 | 1500×3000 |
| Laser tube | 300W SLW CO2 laser tube with cover | |||
| Motor | Japan Mitsubishi Servo | |||
| Max cutting thickness | ∠30-40mm (acryli) Depend on the acryli | |||
| Max. Engraving speed | 14000mm/min | |||
| Transmission type | Taiwan TBI ball screw and Taiwan TBI/PMI linear guide | |||
| Repeat position accuracy | ± 0,025mm | |||
| Working temperature | 20-30 degrees | 0-45 degrees | ||
| Power supply | AC 230v, Single Phase, 50Hz/60Hz | |||
| File format | DXF, BMP, GIF, JPEG, TGA, TIFF, PLT, CDR, DWG | |||
| Power cosnsumption | ∠1500 W | |||
| Cooling system | Special water chiller CW6000 | |||
| Controller | Ruida controller | |||
| CE | CE Mark | |||
| Weight | 500kg | 600kg | 900kg | 1400kg |
| Specifications Of REM-lasers with 500W tubes | ||
| Item | REM1325/500W | REM1530/500W |
| Working size (mm) | 1250×2500 | 1500×3000 |
| Laser tube | 500W SLW CO2 laser tube with cover | |
| Moto | Japan Mitsubishi Servo | |
| Max. Engraving speed | 14000mm/min | |
| Max. cutting thickness | ∠ 40-50mm (acrylic)/ depends on the acrylic | |
| Transmission type | Taiwan TBI ball screw and Taiwan TBI/PMI linear guide | |
| Repeat position accuracy | ± 0,025mm | |
| Working temperature | 0-45 degrees | |
| Power supply | AC 230v, Single Phase, 50Hz/60Hz | |
| File format | DXF, BMP, GIF, JPEG, TGA, TIFF, PLT, CDR, DWG | |
| Power cosnsumption | ∠2000 W | |
| Cooling system | Special water chiller CW6000 | |
| Controller | Ruida controller | |
| CE | CE mark | |
| Weight | 900kg | 1400kg |
