CNC Router With Vacuum Table

 Features of CNC Router With Vacuum  Table:

If you need the adsorption forces to hold the workpiece on the table, our economic  REU900A, REU1312A, REU1325A, REU1530A and REU2030A CNC routers with vacuum tables will be the perfect choice for you. They are engineered and built to fit your application as well as your budget. Our economical vacuum table CNC routers are available in large and small table configurations and are capable of handling a wide variety of milling, drilling, contouring, boring, shaping, grooving, routing and engraving projects. Applications for these CNC routers include: cut out letters, inlays, and ADA and 2.5-D and 3D signs; cabinets, furnitures, store fixtures and other woodworking and plastic POP projects; control panels; and plastic fabrication and machining. All of our CNC routers are built to be rugged, dependable and are backed with superior customer support.

Our economical vacuum table CNC routers are with high – performance and low price. The quality of every CNC router is excellent. Every CNC router carries a full year warranty and our great technical team support! You will find out many advantages after using our CNC router.  Our economical CNC routers with vacuum tables are suitable for private use, as well as for processing production in small, medium and large factories.  Our goal is offer you more and cost you less!

  • Suitable for wood, plastic and aluminium milling and especially for solid wood doors, decorative plates, furnitures, cabinets and other engraving process.
  • Perfect CNC router for 3D models.
  • We have lots of customers in Scandinavia using our CNC routers for various jobs.
  • Full vacuum table or vacuum T-slot table, rack and pinion, stepper motors or Servo motors
  • The vacuum table system no need human fix the material and absorb the material automatically. It sucks the material by vacuum pump.
  •  Advantages Of Vacuum table: saving time, improving efficiency. It is much easy to process the large workpieces.
  • Advanced structure design, high- strength steel and durable, but at a very economical price.
  •  Gantry dual-motor drive make sure the movement fast and smooth.
  • Italy spindle with low failure rate and high strength




Tekniset tiedot

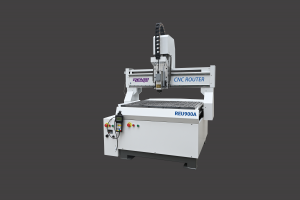

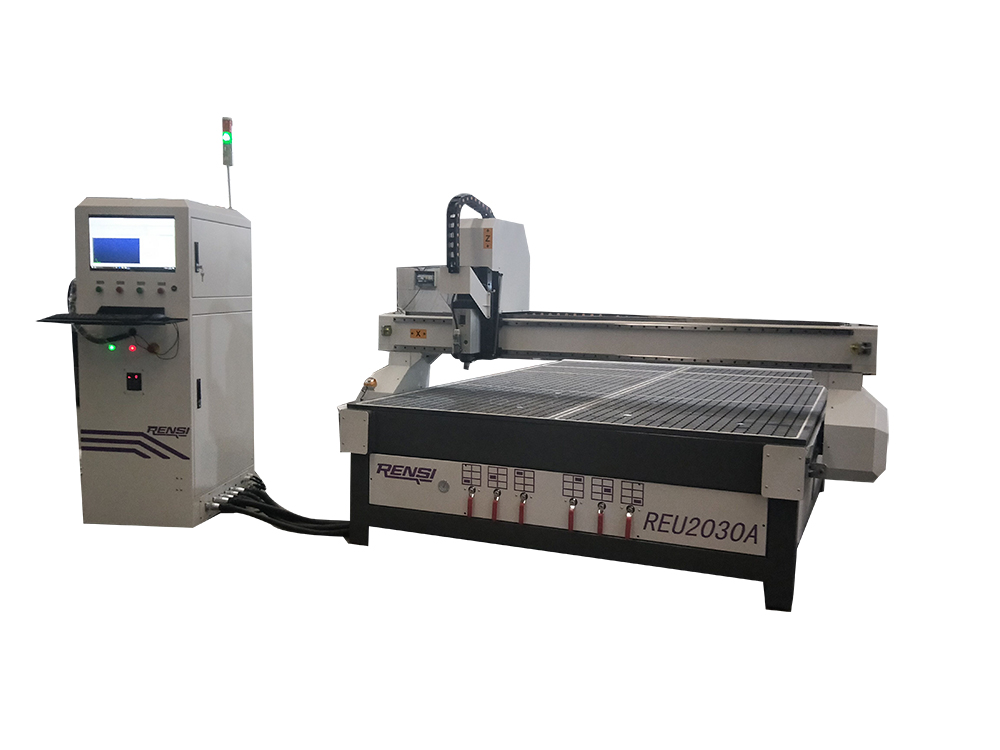

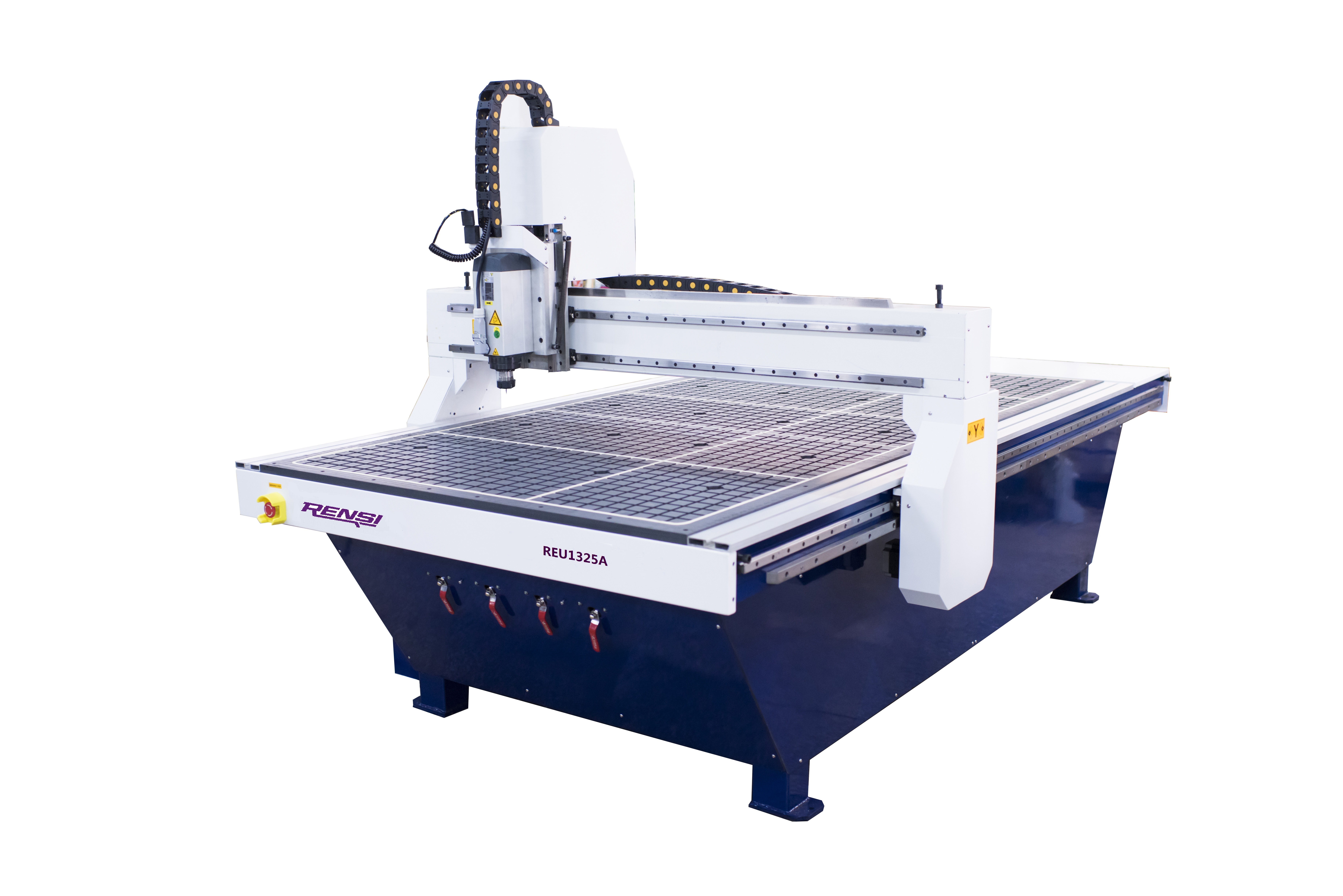

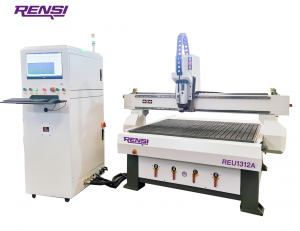

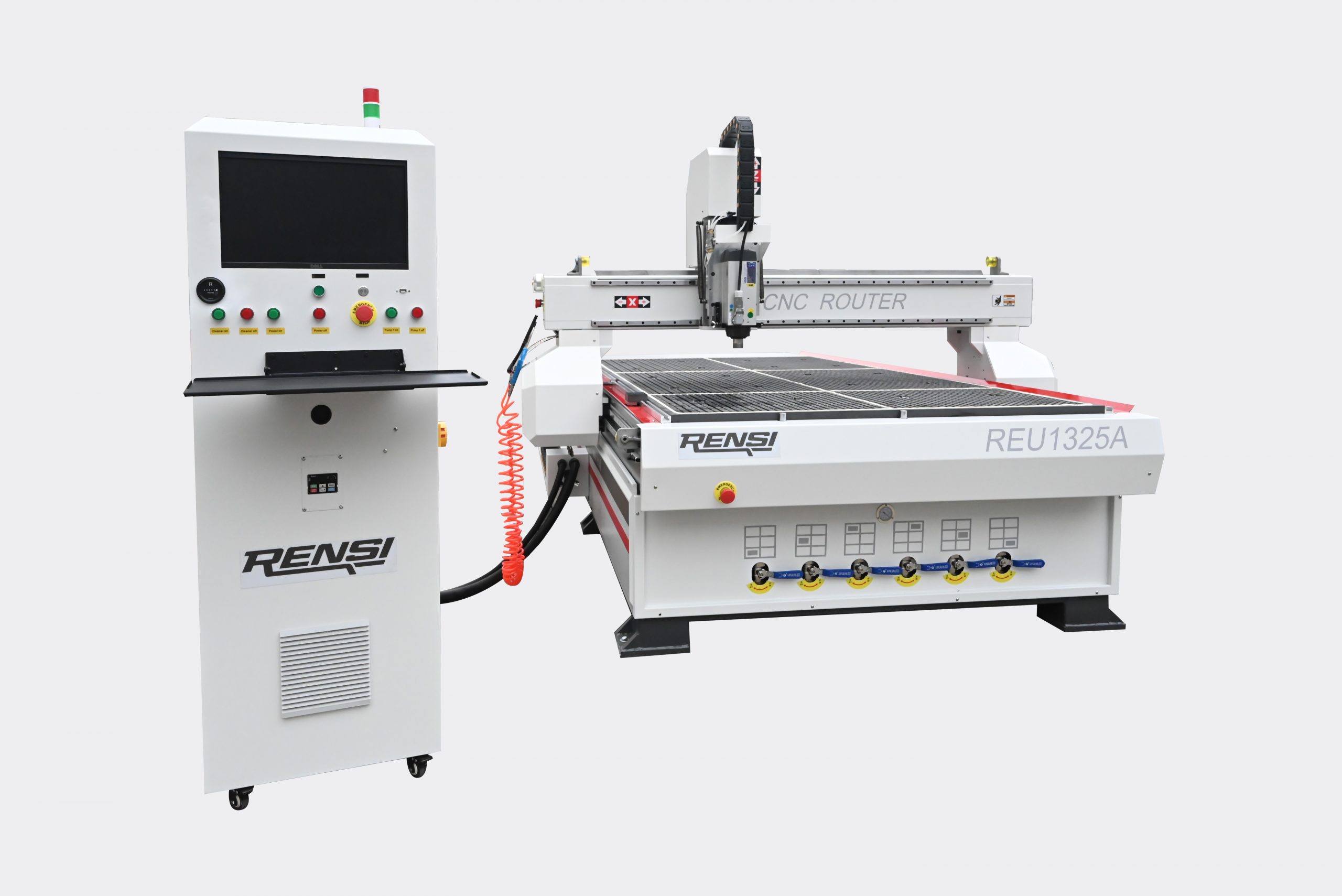

Item REU900A REU1312A REU1325A REU1530A REU2030A
Working size (X,Y) 900×700 1300×1200 1300×2500 1500×3000 2000×3000
Table to gantry 200mm
Working size Z 180mm 180mm
Table Vacuum table
Spindle 1.5kW spindle Italy 6KW HSD
Spindle speed 24000 RPM 18000RPM
Inverter Delte Inverter
Motor Stepper Motors (Opition: Delta or YASKAWA Servo)
Transmission Ball screws and Square Linear Guides in all axes Rack&Pinion in Y X, Linear Guides
Ball Screw and Coupling in Z
Controller Ncstudio PM95A with Lambda
Vacuum pump (4.8KW) 1 SET 2 SETS
Voltage for machine 220v/single phase/50Hz 380V/three phases/50Hz
Voltage for vacuum pump 380V/three phases/50Hz
Weight 385KGS 800KGS 1000KGS 1200KGS 1400KGS
Other options are available
