E8 & E9 – Five-Axis Machining Center

Five-axis machining center features:

The five-axis CNC machining centers perform movement about five different axis simultaneously. The five-axis machining centers machining the complex shapes in a single set-up and reduce the machinist setup time and increases production rate. The five-axis machining centers enable shorter cutting tools to be used since the head can be lowered towards the job and the cutter oriented towards the surface. As a result, higher cutting speed can be achieved, and the vibration of the tool is reduced. Five-axis machining centers also offer the ability to machine extremely complex parts from solid that would otherwise have to be cast. The five-axis machining centers can also offer huge time savings in hole drilling. Drilling a series of holes with different compound angles is very time consuming. With a five-axis machining center, the head can be oriented along the correct axis for each hole automatically, allowing drilling to be completed much more quickly.

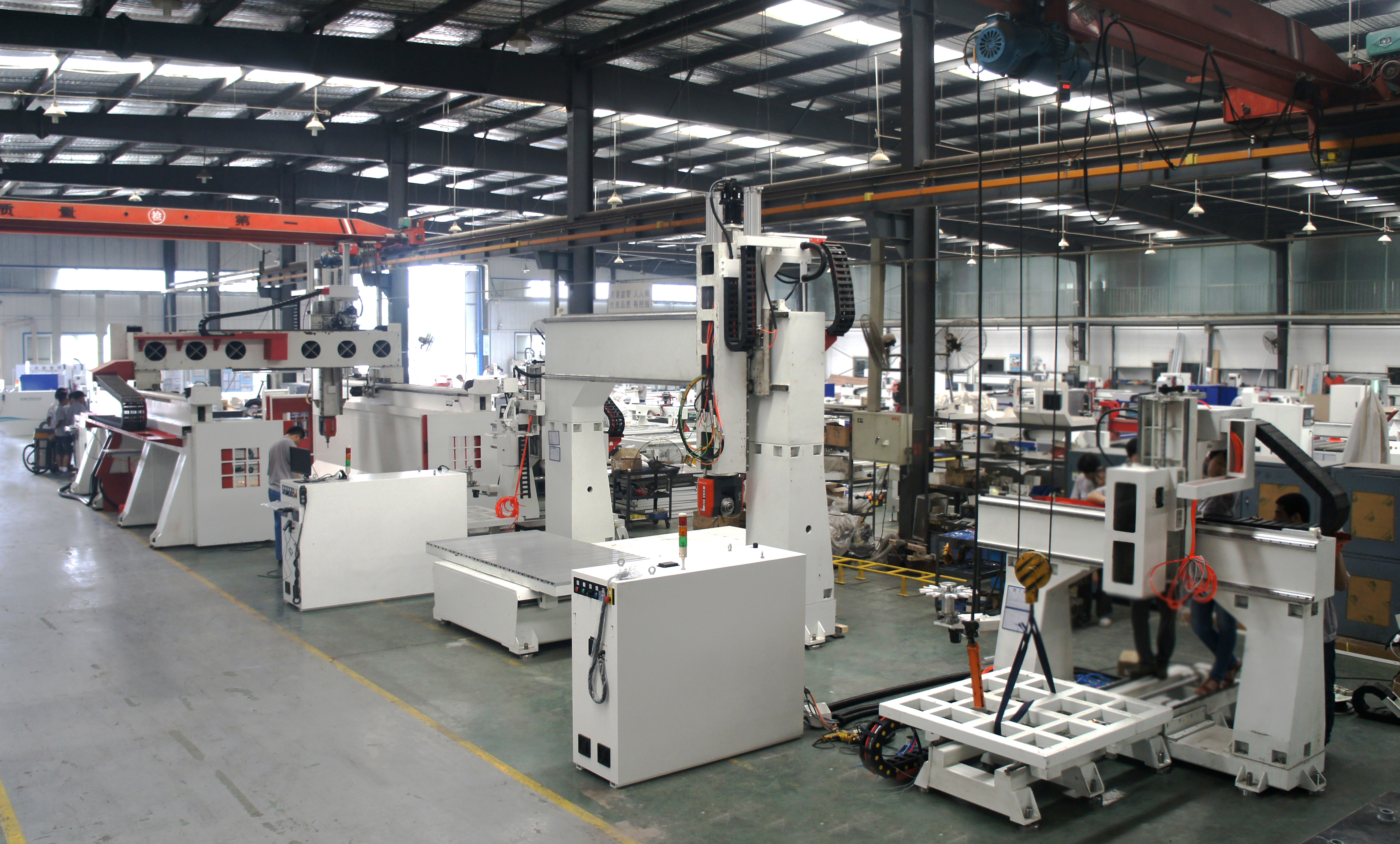

E8- Minin five-axis machining center

  •  An entry-level five-axis machining center with world top-class controller-designed for the most demanding processing requirements, featuring maximum precision, and all-round excellence.
  •  Features world top class components.
  • CNC machining center with 5 synchronizing interpolated axes; Real-Time Tool Center Point Rotation (RTCP), well suited for 3D curved surface processing.

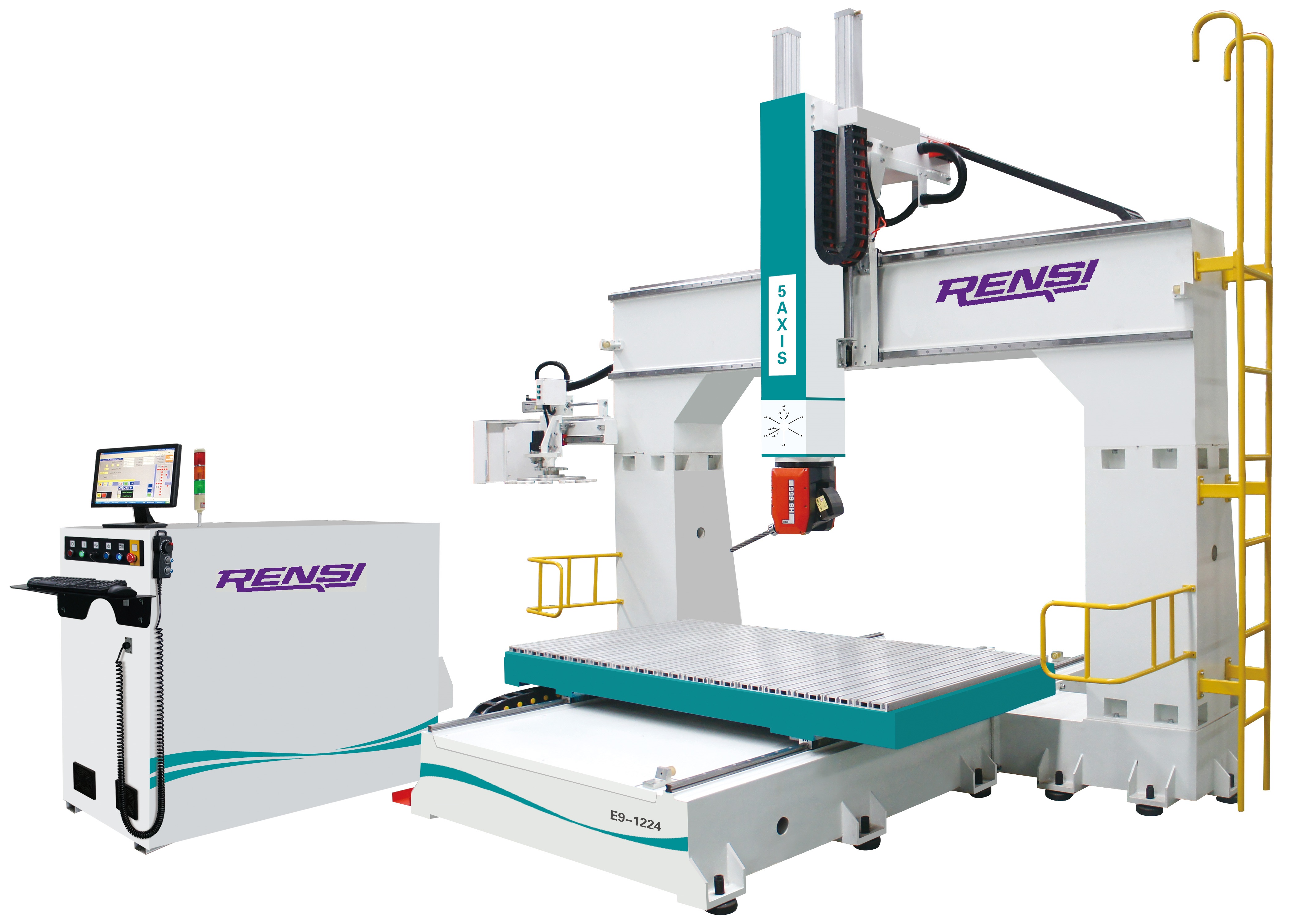

E9 – Venture five-axis machining center

SONY DSC

  • A heavy-duty five-axis machining center equipped with world-renowned controller-designed for the most demanding processing requirements. Maximun precision, faster production.
  • Features world top class components
  • CNC machining center with 5 synchronizing interpolated axes; Real-Time Tool Center Point Rotation (RTCP), well suited for 3 D cured surface processing.
  • Working speed, travelling speed and cutting speed can all be controlled separately, which dramatically improve productivity and finish quality.

Applications:

  • Mold industry: casting mold, automobile, sanitary ware mold, ship, yacht, aviation industry, etc.
  • 3D processing: fiberglass trimming, resin and other non-metal carbon-mixed work pieces processing.









Tekniset tiedot

Series E8-1212 E8-1224 E9-1212 E9-1224 E9-1530
Travelling size (mm) 1720*1820*750 1720*3040*750 1800*1800*950 1850*3100*950 2150*3700*950
Working size (mm) 1220*1220*500 1220*2440*500 1220*1220*650 1200*2400*650 1500*300*650
Table size (mm) 1230*1200 1230*2440 1200*1200 1200*2400 1550*3000
A/C Axis A: +40°/-100°, C: +400°/-40° A: ±120°, C: ±245°
Transmission X/Z ball screw drive, Y helical rack and pinion drive Y helical rack and X/Z pinion drive
Table structure T-slot vacuum Aluminium profile (T-slots)
Spindle power 7 KW/HSD 10KW/HSD
Spindle speed 18000r/min 22000r/min
Travelling speed 60/60/30m/min 60/60/20m/min
Working speed 20m/min
Tool magazine Carousel
Tool slots 8
Driving system Yaskawa
Voltage AC380/3PH/50Hz
Controller OSAI
