Artec Leo

Easy 3D-scanning: See your 3D-object straight from HD display

The first 3D scanner offers all of its devices the ability to ensure automatic processing. With Artec Leo’s ability to do the most intuitive work, 3D scanning is as easy as capturing video. When you scan an object, you can simultaneously see a 3D copy built in real time on the Leon touch screen. Rotate the 3D model screens and check if you have received all areas scanned and then scanned areas were shaded.

Breaktrough in 3D-scanning speed

80 frames per second 3D reconstruction makes the Artec Leo the fastest professional handheld 3D scanner. In addition, its wide view ensures that Artec Leo can scan and process larger objects and views in 3D quickly and accurately and with even greater precision. Users can point the scanner closer to the subject to pick up more detail, much like zooming with a camcorder.

Fully Mobile Scanning Experience

Artec Leo gives you full freedom in 3D scanning thanks to its built-in high-performance processor and battery. There is no need to be connected to a computer or power source while scanning, so you can hold the Leo scanner with a free-hand and walk around and scan an object without the constraints of wires. The battery is interchangeable so you can scan up to a day in the field.

Smartest 3D-Scanner on the market

Artec Leo incorporates state-of-the-art technology such as the NVIDIA® Jetson ™ platform, which is a scanner’s own internal computer, featuring a Quad-core ARM® Cortex®-A57 MPCore CPU and an NVIDIA Maxwell ™ 1 TFLOPS GPU with 256 NVIDIA® CUDA® Cores; built-in 9 DoF inertia system – accelerometer, gyro and compass – that makes the scanner understand its location and surroundings; and a two-in-one optical system that does the most accurate texture matching to the geometry.

3D-scanner Designed to be used

The built-in battery, display and wireless take the Artec Leo scanner to the next level of handheld 3D scanning. For complete freedom of movement while scanning, video can be transferred to another device via Wi-Fi or Ethernet if you need an extra display and data can be downloaded at the touch of a button. Adding these features to a well-designed balanced and ergonomic device, 3D scanning with one hand is easy and comfortable and you have the next generation of professional scanners.

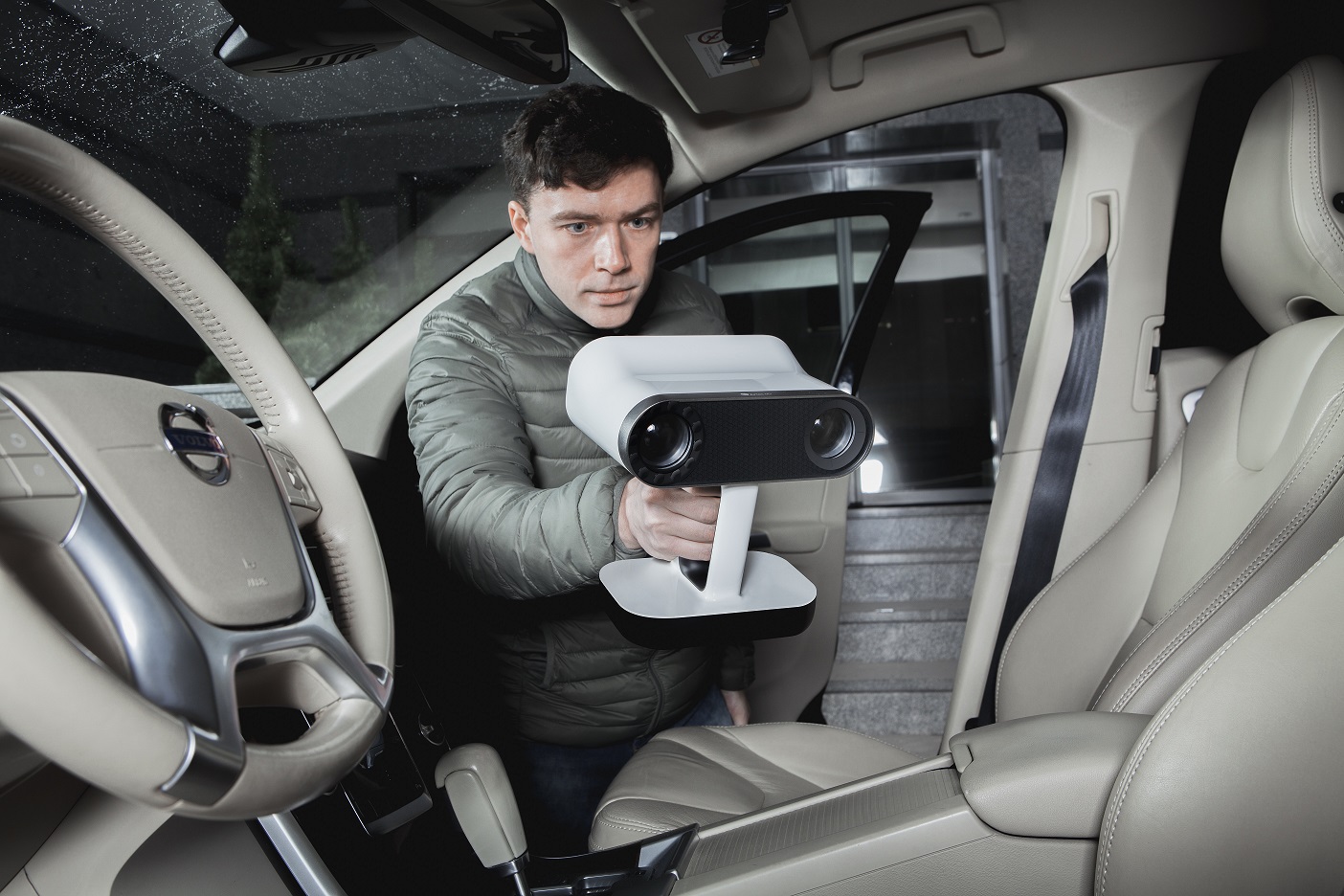

Leo skanneri skannaa autoa

Applications

Because the user can capture large areas as well as fine details, the Artec Leo scanner can be used on a wide variety of objects, from small mechanical objects to human bodies, cars, boats or crime scenes. The fields of application are wide ranging including industrial manufacturing and quality control, healthcare, crime scene investigation, virtual reality and e-commerce. In addition, Artec Leo’s new wireless operations and in-house processing will open up new opportunities for integration.

Rikospaikkaskannaus

No Need For Reference Objects

Like all Artec 3D scanners, Leo uses powerful hybrid geometry and texture tracking, meaning you can just point to a piece and scan. Under normal circumstances, there is no need to glue the reference labels over here to the object (and again remove them after scanning)

Many uses of Artec 3D-scanners

Artec ™ 3D scanners have high-quality texture models and can be used to save the Finnish cultural heritage, for example, to scan museum objects and, for example, 3D print them to anyone who wants to.

The Artec 3D scanner can be connected to a Robot. CAN AUTOMATE MEASUREMENT EVENT, ONLINE MEASUREMENTS AND SCANNING MAY BE CARRIED OUT. Automation offers endless possibilities.

In quality control, the robot scanner is capable and the latest application is the so-called. On the CSI side to assist in the technical investigation of the police. The Artec scanner scans with precision and color images the potential victims and the environment in which the crime occurred, making reconstruction easy and fast on the computer screen and 3D analysis to help determine the course of events.

A robot scanner can be with different robots, with any robot.

Rensi wants to increase customer productivity and offer a comprehensive solution that also includes the Artec scanner productivity environment with SpaceClaim software.

Productivity refers to the relationship between the output of an enterprise, ie the value produced by the enterprise, and the resources (personnel, machinery, etc.) needed to produce the output.

European competition With Poland, Estonia, and Sweden, the price of output is constantly falling, which I hope will force companies to continuously increase their productivity.

In all situations, companies must take care of their competitiveness by increasing their productivity. Note that cheap is not synonymous with productivity, rather the opposite.

Productivity can be increased eg. by making more use of existing resources, investing in new technologies and, above all, training our staff.

As part of a complete productivity solution, Rens is continuously trained by our knowledgeable experts.

As part of a modern production solution, 3D scanning is part of quality control and design.

Tekniset tiedot

A quantum leap above industry standard Artec Eva

Display	Built-in half HD touch panel screen
Processing	On-board real-time processing
Volume capture zone	Over 3 times greater
3D reconstruction rate, up to	Leo: 80 FPS, Eva: 16 FPS
3D resolution, up to	0.25 mm
3D point accuracy, up to	0.1 mm

Color resolution	2.3 mp
Structured light source	VCSEL
Position sensors	Built-in 9 DoF inertial system
Connectivity	Wireless connectivity and data transfer
Power source	In-built exchangeable battery, optional mains power
Multi-core processing	NVIDIA® Jetson™ TX1
